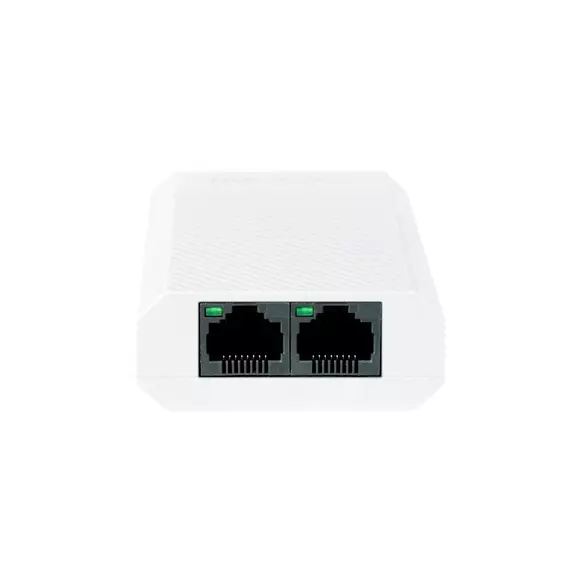

PoE репитер HIKVISION DS-3E0503DP-E/R
34259
1 × гигабитный PoE IN порт и 2 × гигабитных PoE OUT порта
Соответствие стандарту IEEE 802.3af/at
До 30 Вт выходной мощности PoE на всё устройство
Удлинение PoE для увеличения расстояния передачи данных и питания
Подключение Plug and Play, не требует настройки
Настольная установка
| General Specifications | |
| Shell: | Plastic material, fan-free design |
| Net Weight: | 0.058 kg (0.128 lb) |
| Dimensions (W × H × D): | 88.0 mm × 22.0 mm × 58.0 mm (3.46'' × 0.87'' × 2.28'') |
| Operating Temperature: | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature: | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity: | 5% to 95% (no condensation) |
| Relative Humidity: | 5% to 95% (no condensation) |
| Max. Power Consumption: | 1.9 W |
| Power Consumption in Idle: | ≤1.55 W |
| Installation Mode: | Desk-Mounted |
| Surge Protection: | 2 KV |
| Network Parameters | |
| Ports: | 1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT port |
| MAC Address Table: | 2 K |
| Switching Capacity: | 6 Gbps |
| Packet Forwarding Rate: | 4.46 Mpps |
| Internal Cache: | 1 Mbits |
| PoE Power Supply | |
| PoE Standard: | IEEE 802.3af, IEEE 802.3at |
| PoE Port: | PoE: Ports 1 to 3 |
| Max. Port Power: | 30 W |
| PoE Power Budget: | 30 W |
